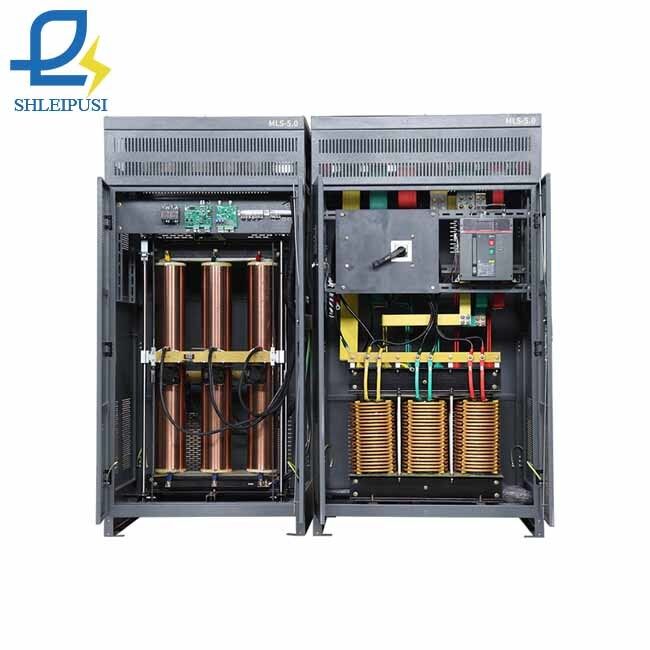

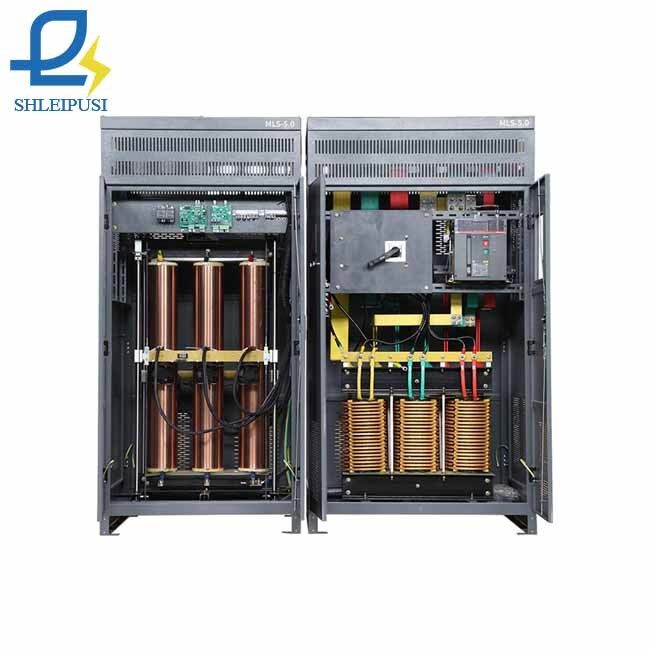

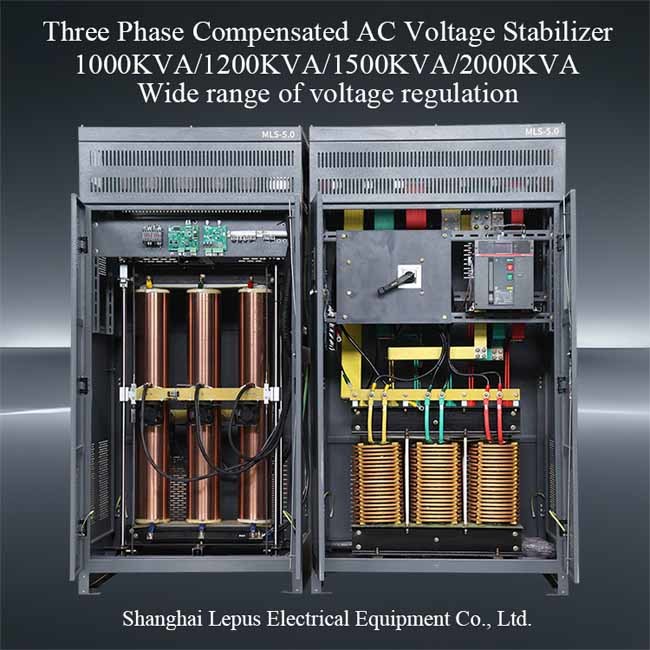

1000KW Three Phase Servo Voltage Stabilizer - Product Details & Service
1. Product Description
The 1000KW Three phase servo voltage stabilizer is a high-performance electrical equipment designed to provide stable and reliable voltage supply for various high-power applications. It effectively solves voltage fluctuations, ensuring the normal operation of electrical equipment, reducing equipment damage and energy loss. Suitable for global markets including North America, South America, the Middle East, Africa and Europe, this stabilizer is widely used in factories, power supply companies, substations, power stations, generator manufacturers, power transmission equipment, power distribution rooms and other electrical places.
Key Features & Advantages
Core Performance: High Precision, Fast Response, Long Service Life, Low Losses, Full Capacity, Wide Voltage Regulation Range
Convenient Design: Equipped with brake wheels for easy movement; Intelligent LCD screen for clear data display and real-time working status monitoring; Heat emission holes for effective heat dissipation; High-quality switch for stable operation.
Intelligent LCD Screen Advantages: Adopts advanced technology, features clear data display, real-time working status monitoring and multifunctional operation.
Reliable Wiring: Reliable terminals with extremely strong insulation properties; Clear voltage markings for easier wiring.
Main Components
-
Powerful Motor: Drives the carbon brush to regulate voltage, enabling faster voltage regulation.
-
High-quality Carbon Brushes: Double carbon brushes with strong conductivity, more accurate voltage stabilization and small abrasion.
-

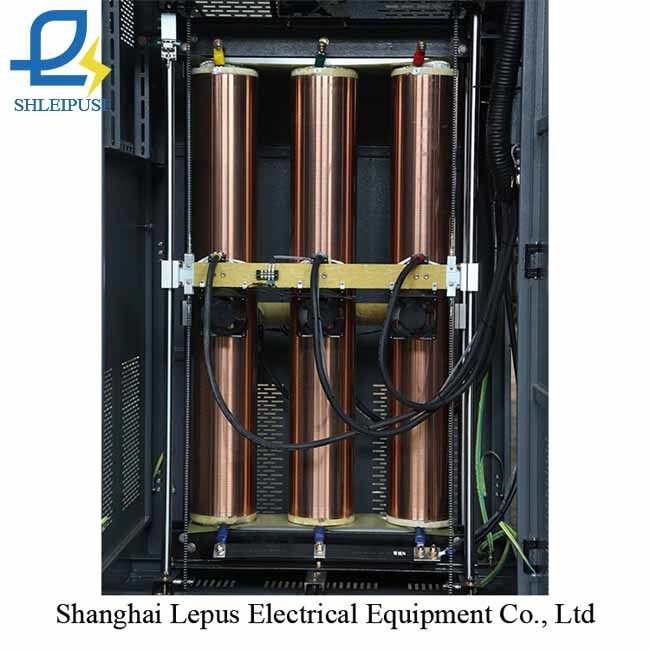

Pure Copper Column: Adopts full purple copper column and copper wire automatic wiring, ensuring regular and tight copper wires, more accurate voltage stabilization and true power labeling.
-
Regulator Compensation Transformer: Made of high-quality raw materials to improve voltage regulation efficiency.
Comprehensive Protection Functions
Over voltage protection, Low voltage protection, Over load protection, Short-circuit protection, Over Temperature Protection, Time Delay Protection, Reverse Phase Protection, Phase Lack Protection, Frequency Protection, Neutral Line Missing Alert.
Product Parameters
|
Item
|
Specification
|
|
Product name
|
1000KW Three phase voltage stabilizer
|
|
Brand
|
SHLEIPUSI or support OEM/ODM service
|
|
Rated capacity
|
1000KW or customized
|
|
Product model
|
SBW-1000KW
|
|
Rated input voltage range
|
Three phase 380V±20% or Customized
|
|
Rated output voltage
|
Three phase 380V or customized
|
|
Working frequency
|
50/60Hz
|
|
Display system
|
The digital display shows the input and output voltages of each phase, the current of each phase, and records the working status.
|
|
Output precision
|
±2%
|
|
Insulation class
|
F
|
|
Waveform distortion
|
No additional waveform distortion
|
|
Working temperature
|
－15℃~＋45℃
|
|
Cooling way
|
Dry type air cooling with cooling fans
|
|
Certificates
|
ISO9001; CE; UL
|
|
Warranty
|
2 Years
|
Application
Robot, Elevator, CNC machine, Factory, Laser cutting machine, Air compressor, Generator/Alternator, Import&Export machine, Medical machine, Furnace, Blender, electricity transferring equipment, switch board room, Power Distribution Room, Power station, etc.
2. Our Service
Customized Service
-
Product customization: Support customized product appearance, parameters and configuration (e.g., power, voltage and appearance of transformers, regulators and variacs).
-
Brand customization: Support customized LOGO, which can be printed on products, operation manuals, instructions and technical specifications.
-
Custom packing: Usually use wooden cases; support other packing methods as required.
-
Photography service: Free professional product pictures and videos.
Shipping Service
Various modes of transportation: Sea shipment, Air shipment, Land transportation, Express delivery, Railway transportation.
Various transportation terms: EXW, FCA, FAS, FOB, CFR, CIF, CPT, CIP, DAT, DAP, DDP.
After-sales Service
-
24/7 technical support: Professional after-sales engineering team provides video guidance for product use.
-
Warranty service: Free replacement of damaged components due to quality issues during the warranty period.
-
On-site installation: Provide on-site equipment installation by our engineers.
3. FAQ (Frequently Asked Questions)
-
Q: How long is the lead time? A: It's normally three to seven working days. It depends on the quantity and product requirements: 10 days or so for small quantity; less than 10 days for standard products; 20 to 30 days for large quantity and customized products.
-
Q: How do you control the product quality? A: Professional staff are responsible for quality inspection from material incoming to product manufacturing. Only qualified products can be shipped to customers.
-
Q: What is the payment terms? A: Normally 30% deposit for standard products; at least 50% advance payment for customized products; all balance paid before shipment.
-
Q: Could you provide technical support in product installation? A: Yes. Our professional technical team is responsible for product installation and application guidance.
-
Q: What is the package of your products? A: Strong wooden cases for large products; cartons for small products.
-
Q: Can you put our logo on your product? A: Yes, we accept OEM and ODM. Your logo can be printed on products for large quantity orders.
-
Q: Where is your major market? A: Our major markets include North America, South America, the Middle East, Africa, Europe, central Asia, East Asia, South Asia, etc.
-
Q: What about your production capacity? A: It depends on the product: 10,000 pieces per month for small-power products; 2,000 pieces per month for large-power products.
-
Q: What is the MOQ? A: The MOQ is 1 set.
