200KVA Three Phase 480V to 380V Step Down Voltage Transformer Product Description
Product Overview

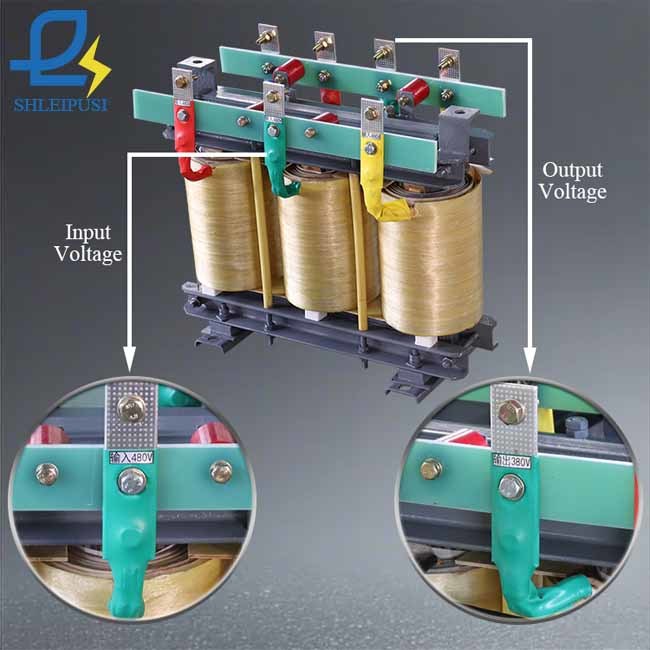

The 200KVA Three Phase Step Down Voltage Transformer is a high-performance electrical device designed to convert three-phase 480V input voltage to 380V output stably and efficiently. Widely used in global markets, it caters to diverse clients including factories, technical purchasers, power supply companies, substations, power plants, generator manufacturers, power transmission equipment providers, distribution rooms, and various electricity-consuming venues. This transformer ensures safe and reliable voltage conversion, supporting the normal operation of industrial equipment, medical devices, and power distribution systems.
Features, Characteristics and Advantages
Equipped with reliable terminals featuring extremely strong insulation properties, the transformer uses tinned copper terminals for enhanced conductivity and corrosion resistance. Its high-purity winding material ensures excellent electrical conductivity, low temperature rise, and long service life. Adopting new noise-free silicon steel, it boasts high magnetic flux, low operating temperature, and energy-saving performance. The transformer uses high-insulation materials that can withstand a 3500V voltage test, paired with a high-quality nylon frame to further ensure superior insulation and operational safety. It features no additional waveform distortion, stable output precision of ±2%, and dry-type air cooling with a draught fan for efficient heat dissipation.
Why Choose Us
We stand out in the global market with strict quality control, certified by ISO9001, CE, and UL. Our 200KVA three-phase step-down transformer offers flexible customization (appearance, parameters, configuration) and OEM/ODM services to meet diverse client needs. We provide comprehensive services including free professional photography, multiple shipping options (sea, air, land, express, railway) and flexible trade terms. Our 2-year warranty and professional after-sales support (video technical guidance, free component replacement, on-site installation) ensure worry-free use. With a monthly capacity of 2,000 pcs for high-power products and MOQ of 1 set, we can meet both small and large orders efficiently.
Technical Specifications
|
Item
|
Specification
|
|
Product Name
|
Three phase 480V To 380V Step down voltage transformer
|
|
Brand
|
SHLEIPUSI or support OEM/ODM service
|
|
Rated Capacity
|
200KVA or customized
|
|
Product Model
|
SBK-200KVA
|
|
Rated Input Voltage
|
Three phase 480V or Customized
|
|
Rated Output Voltage
|
Three phase 380V or customized
|
|
Working Frequency
|
50/60Hz
|
|
Output Precision
|
±2%
|
|
Insulation Class
|
H
|
|
Protection Class
|
IP 00
|
|
Cooling Method
|
Dry type air cooling (with draught fan)
|
|
Certificates
|
ISO9001; CE; UL
|
|
Warranty
|
2 Years
|
Frequently Asked Questions (FAQ)
Q: How long is the lead time? A: Normally 3-7 working days for standard products, 10 days for small quantities, and 20-30 days for large quantities and customized products.
Q: How do you control product quality? A: We conduct professional quality inspection from material receiving to manufacturing; products are only shipped when they meet standards.
Q: What are the payment terms? A: 30% deposit for standard products, 50% advance for customized products, and the balance paid before shipment.
Q: Do you provide technical support for installation? A: Yes, our professional technical team is responsible for product installation and application guidance.
Q: What is the packaging? A: Large products: strong wooden cases; small products: cartons.
Q: Can you put our logo on the product? A: Yes, we accept OEM/ODM, and logo placement is available for large-quantity orders.
