Single Phase Servo Type Voltage Regulator - SHLEIPUSI
Product Overview
Our Single phase servo type voltage regulator is a high-performance electrical equipment designed to stabilize voltage output, ensuring stable and reliable power supply for various applications worldwide. Suitable for factories, power supply companies, substations, photovoltaic systems, electric vehicle charging stations, power plants, glass manufacturing plants, precision equipment, generator manufacturers, laser cutting machines, blenders and other electrical places, this regulator effectively solves voltage fluctuations, protects electrical equipment from damage, and improves operational efficiency.
Features, Characteristics and Advantages

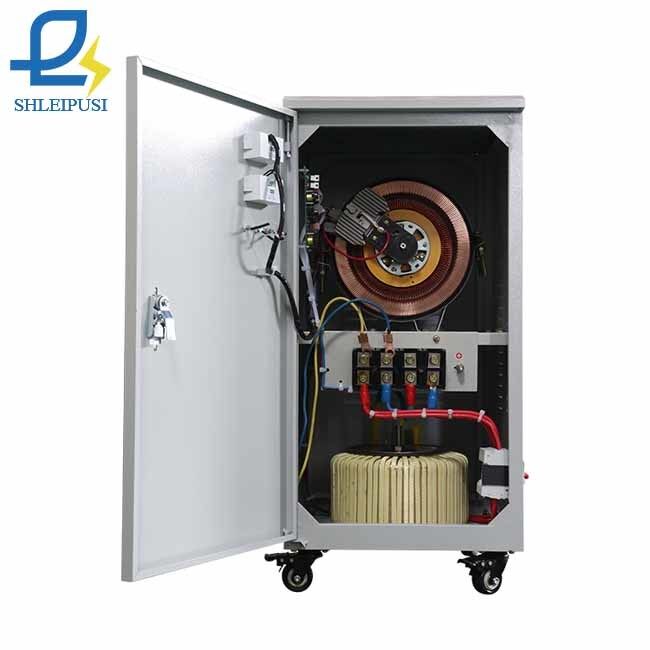

This Single phase servo type voltage regulator boasts outstanding features: high precision with ±2% output accuracy, fast response to voltage changes for real-time stabilization, long service life supported by high-quality raw materials, low energy losses to save power consumption, full capacity operation for stable performance, and a wide voltage regulation range (176-264V input, customizable). It is equipped with brake wheels for convenient mobility, reliable terminals with strong insulation, full purple copper coil with automatic wiring for tight winding and accurate voltage stabilization, fast rotation speed and powerful driving performance for quick signal adjustment, a microcomputer control board with sub-modulation control, and double carbon brushes with strong conductivity.
Multiple protection functions are integrated, including over-voltage, low-voltage, over-load, short-circuit, over-temperature, time delay, reverse phase sequence, phase lack, frequency protection and neutral line missing alert, ensuring safe and stable operation.
Why Choose Us
We stand out in the global market with professional strength: we offer OEM/ODM services to meet customized needs of appearance, parameters and configuration; our products have passed ISO9001, CE, UL certifications, ensuring high quality; we provide 2-year warranty and professional after-sales support, including technical guidance, free component replacement and on-site installation. With monthly production capacity of 10,000 small-power units and 2,000 large-power units, we can meet both small and large orders, with MOQ of only 1 set. We also offer free product photography, flexible shipping methods and terms, and brand customization services.
Technical Specifications
|
Item
|
Specification
|
|
Product Name
|
Single phase servo type automatic voltage stabilizers/regulators
|
|
Brand
|
SHLEIPUSI or support OEM/ODM service
|
|
Rated Capacity
|
30KVA or customized
|
|
Product Model
|
TND-30KVA
|
|
Rated Input Voltage Range
|
Single phase 176-264V or Customized
|
|
Rated Output Voltage
|
Single phase 220V or customized
|
|
Working Frequency
|
50/60Hz
|
|
Display System
|
Digital display
|
|
Output Precision
|
±2%
|
|
Voltage regulation speed
|
1-1.5S
|
|
Insulation Class
|
F
|
|
Waveform Distortion
|
No additional waveform distortion
|
|
Working Temperature
|
－15℃~＋45℃
|
|
Cooling Method
|
Dry type air cooling (with draught fan)
|
|
Certificates
|
ISO9001; CE; UL
|
|
Warranty
|
2 Years
|
Frequently Asked Questions (FAQ)
Q: How long is the lead time? A: Normally 3-7 working days for standard orders. Customized or large quantity orders may require 10-30 days depending on specifications.
Q: How do you control the product quality? A: Professional quality inspection staff monitor material intake and manufacturing processes. Products are shipped only after meeting strict quality standards.
Q: What is the payment terms? A: 30% deposit for standard products, 50% advance for customized products, with balance paid before shipment.
Q: Could you provide technical support in product installation? A: Yes, our professional technical team provides product installation and application guidance for customers.
Q: What is the package of your products? A: Large products use strong wooden cases for protection, while small products use carton packaging.
Q: Can you put our logo on your product? A: Yes, we accept OEM and ODM services. Your logo can be placed on products for large quantity orders.
