3 Phase Sero Type Electrical Voltage Transformer 5.5KVA 200-400V

3 Phase Sero Type Electrical Voltage Transformer 5.5KVA 200-400V
3 Phase Sero Type Electrical Voltage Transformer 5.5KVA 200-400V
3 Phase Sero Type Electrical Voltage Transformer 5.5KVA 200-400V 3 Phase Sero Type Electrical Voltage Transformer 5.5KVA 200-400V 3 Phase Sero Type Electrical Voltage Transformer 5.5KVA 200-400V 3 Phase Sero Type Electrical Voltage Transformer 5.5KVA 200-400V
Basic Information
Place of Origin: Shanghai
Brand Name: SHLEIPUSI Or Support OEM/ODM Service
Certification: CE;ISO9001;UL
Model Number: SF-5.5KW Or Customized
Minimum Order Quantity: 1
Price: 1 pc≤Qty≤5 pcs 75USD; 5 pcs＜Qty≤100 pcs 68USD; 100pcs＜Qty 66USD
Packaging Details: Carton packing ; Reference packing size: 12X6X22CM; Reference weight: 1.5KG
Delivery Time: 1 pc≤Qty≤5 pcs 1-7 working days; 5 pcs＜Qty≤100 pcs 7-14 working days; 100pcs＜Qty More than 14 working days
Payment Terms: T/T,D/P,D/A,L/C,Western Union
Supply Ability: 1000000PCS
Get Best Price
Chat Now
Detail Information
Product Name: 5KW 3 Phase Servo Type Transformer Place Of Origin: Shanghai, PRC
Rated Capacity: 5.5KW Or Customized Product Model: SF-5.5KW
Rated Input Voltage: Three Phase 200V 208V 220V Or Customized Rate Output Voltage: Three Phase 380V 400V Or Customized
Output Precision: ±2% Working Temperature: －15℃~＋45℃
Insulation Resistance: ≥5MΩ
Highlight:

Sero Type Electrical Voltage Transformer

,

Electrical Voltage Transformer 5.5KVA

,

3 Phase Voltage Transformer 400V

Product Description

5KW 3 Phase Servo Type Transformer | High Precision Industrial Servo Transformer

Contact Us

TEL: +86 15926315252

MOBILE / WECHAT: +86 15926315252

EMAIL: daniel@shlepus.com

Whatsapp: +86 18979230829

Product Introduction

Our SF-5KW 5KW 3 Phase Servo Type Transformer, from professional industrial brand SHLEIPUSI with full OEM/ODM support, is a high-reliability power solution engineered for demanding industrial applications. It is widely trusted by electrical engineers, factory operators, and system integrators worldwide for elevators, CNC machine tools, factory power distribution, photovoltaic (PV) systems, EV charging piles, generators, precision equipment, laser cutting machines, air compressors, and power transmission systems. With a 5KW rated capacity, this servo type transformer delivers stable voltage conversion, ±2% output precision, and zero additional waveform distortion, ensuring consistent, damage-free performance for sensitive industrial equipment. Built with Class F insulation and dry-type air cooling, it fully complies with global industry standards, making it the ideal choice for industrial facilities across the global market.

Key Features & Advantages

  • Full capacity operation for stable, uninterrupted performance under continuous full-load industrial operation

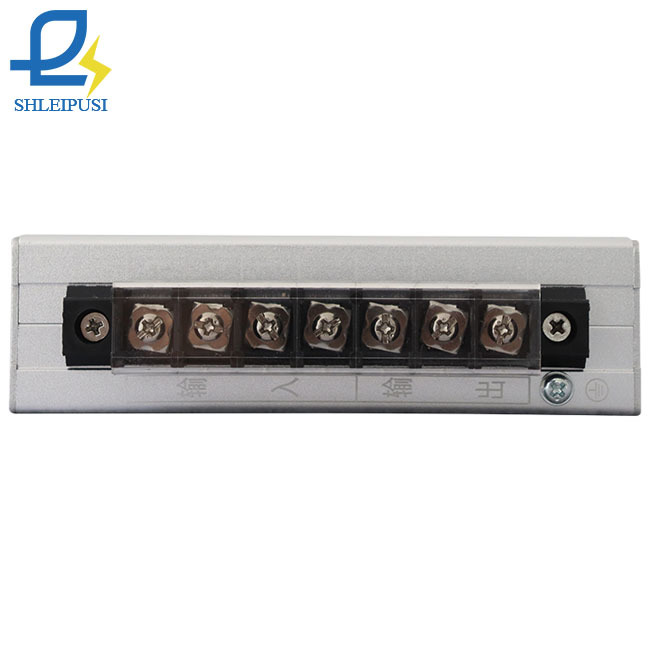

  • Robust high-insulation terminals for maximum electrical safety and long-term reliable circuit connection
  • Low temperature rise and minimal power losses to cut long-term operational energy costs
  • Compact space-saving design to fit limited installation spaces in integrated industrial systems
  • Long service life, energy-efficient and eco-friendly operation to support sustainable manufacturing
  • Zero extra waveform distortion to protect precision equipment from harmful voltage fluctuations

Why Choose Our 5KW 3 Phase Servo Type Transformer

With decades of experience in industrial transformer manufacturing, we understand the unique power needs of different industries, tailoring solutions to maximize your operational efficiency and minimize downtime. Our products hold ISO9001, CE, and UL certifications, fully compliant with international safety and quality standards for global market access. We offer full customization of power, voltage, appearance, logo, and packaging to meet your unique project needs. Every unit undergoes strict multi-stage quality testing before shipment, backed by a 2-year warranty. We provide a flexible MOQ (minimum 1 set), monthly production capacity up to 10,000 small-power units, comprehensive global shipping options covering all mainstream incoterms, lifetime free technical support, on-site installation guidance, and free professional product photography services.

Technical Specifications

Parameter Details
Product Name 5KW 3 Phase Servo Type Transformer
Brand SHLEIPUSI / OEM/ODM Supported
Model SF-5KW
Rated Capacity 5KW (Customizable)
Rated Input Voltage 3 Phase 200V/208V/220V (Customizable)
Rated Output Voltage 3 Phase 380V/400V (Customizable)
Working Frequency 50/60Hz
Insulation Class Class F
Output Precision ±2%
Waveform Distortion No Additional Distortion
Working Temperature -15℃ ~ +45℃
Cooling Method Dry Type Air Cooling
Certifications ISO9001, CE, UL
Warranty 2 Years


3 Phase Sero Type Electrical Voltage Transformer 5.5KVA 200-400V 0

3 Phase Sero Type Electrical Voltage Transformer 5.5KVA 200-400V 1

Frequently Asked Questions (FAQ)

  1. How long is the lead time?

    3-7 working days for standard products; 10-30 days for custom orders, based on quantity and requirements.
  2. How do you control product quality?

    We conduct full-process quality inspection from raw material intake to final production, only shipping products that meet strict international standards.
  3. What are your payment terms?

    30% deposit for standard products, 50% advance for custom orders, with the balance paid before shipment.
  4. Can you provide technical support for product installation?

    Yes, our professional team offers full installation guidance, including on-site service by our certified engineers.
  5. What is your product packaging?

    Large products use sturdy wooden cases; small products use high-quality cartons, with custom packaging options available.
  6. Can you add our custom logo to the transformer?

    Yes, we provide full OEM/ODM services, with custom logo placement available for qualified bulk orders.
  7. What is your main market?

    Our products are sold globally, covering Central Asia, East Asia, South Asia, Africa, South America, and North America.
  8. What is your production capacity?

    We have a monthly capacity of 10,000 units for small-power transformers, and 2,000 units for large-power models.
  9. What is your minimum order quantity (MOQ)?

    Our MOQ is 1 set, supporting both sample testing and bulk wholesale orders.
  10. Are your transformers compliant with international industrial standards?

    Yes, our 5KW 3 Phase Servo Type Transformers hold ISO9001, CE, and UL certifications, fully meeting global safety and quality requirements.
  11. Can you customize input and output voltage for special applications?

    Absolutely, we support full customization of voltage, power, and other parameters to fit your unique industrial application needs.
