200VA 300VA Mini Voltage Transformer Elevator Transformer 220V 24V Voltage Transformer

Basic Information
Place of Origin: Shanghai
Brand Name: SHLEIPUSI Or Support OEM/ODM Service
Certification: CE;ISO9001;UL
Model Number: BK-600VA Or Customized
Minimum Order Quantity: 1
Price: 1 pc≤Qty≤5 pcs 47USD; 5 pcs<Qty≤100 pcs 44USD; 100pcs<Qty 42USD
Packaging Details: Non-fumigation plywood case ; Reference packing size: 15X15X15CM; Reference weight: 11KG
Delivery Time: 1 pc≤Qty≤5 pcs 1-7 working days; 5 pcs<Qty≤100 pcs 7-14 working days; 100pcs<Qty More than 14 working days
Payment Terms: T/T,D/P,D/A,L/C,Western Union,Alipay,Wechat pay
Supply Ability: 1000000PCS
Get Best Price
Chat Now
Detail Information
Product Name: Single Phase Elevator Transformer Place Of Origin: Shanghai, PRC
Rated Capacity: 600VA Or Customized Product Model: BK-600VA Or Customized
Rated Input Voltage: 380V Or Customized Output Voltage: 440V Or Customized
Output Precision: 2% Working Temperature: -15℃~+45℃
Noise: ≤50DB
Highlight:

200VA mini voltage transformer

,

300VA elevator voltage transformer

,

220V to 24V voltage transformer


Product Description

Single Phase Elevator Transformer | Reliable Elevator Power Solution | SHLEIPUSI

Contact Us

Tel: +86 15926315252 | WeChat/WhatsApp: +86 15926315252 | Email: daniel@shlepus.com

Product Introduction

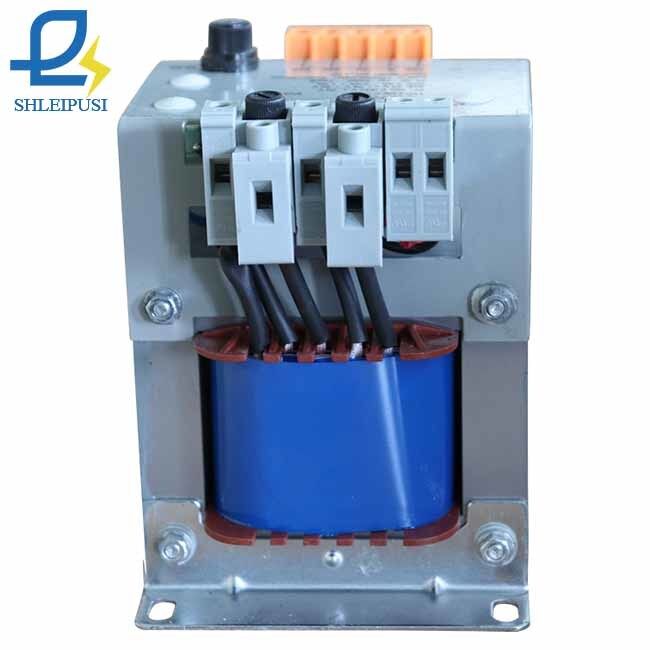

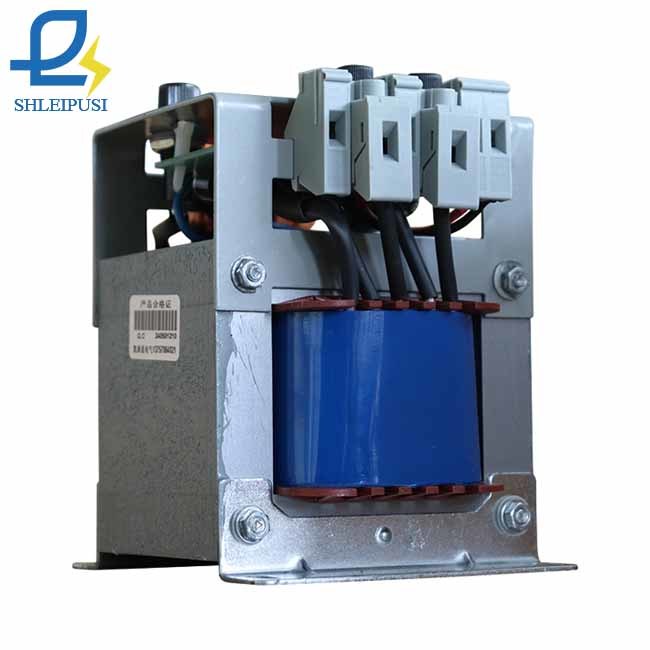

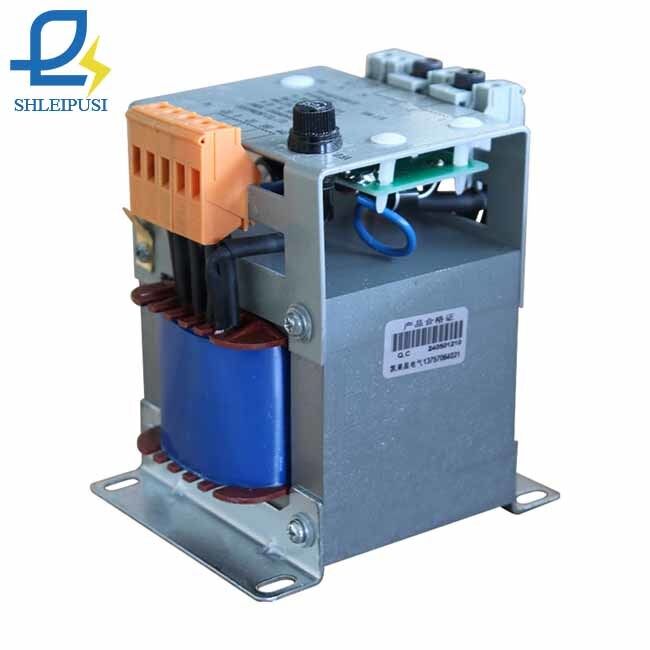

Our Single Phase Elevator Transformer (Model BK-600VA) is a purpose-built dry-type power distribution device engineered for the unique safety and stability requirements of elevator systems. Manufactured in Shanghai, China, this transformer delivers full-capacity operation with exceptional precision, making it an ideal power solution for elevator control circuits, factory electrical systems, CNC machine tools, photovoltaic (PV) solar setups, EV charging stations, precision equipment, and power transmission infrastructure. Designed to adapt to global power grids (50/60Hz), it ensures seamless integration across international industrial and commercial applications while meeting strict environmental and safety compliance standards.

Key Features & Advantages

Built for elevator systems and heavy-duty industrial use, this single-phase transformer stands out with its superior performance and durability:
  • High-Permeability Silicon Steel Core: Delivers noise-free operation (<55dB), high magnetic flux efficiency, and energy-saving design, minimizing energy loss and reducing operational costs.
  • High-Purity Winding Material: Ensures strong electrical conductivity, low temperature rise (<80K), and stable current transmission—critical for elevator systems that demand consistent power delivery.
  • Superior Insulation Performance: F-class insulation materials withstand 3500V dielectric tests, with a high-quality nylon frame and reliable insulated terminals providing exceptional insulation resistance (≥5MΩ) and protection against electrical faults.
  • Robust & Safe Construction: Features a durable, shock-resistant design with convenient wire connection, simplifying installation for electrical engineers while meeting strict safety standards for elevator applications.
  • Efficient & Stable Output: Boasts a ±2% output precision, 4% short-circuit resistance, and ≥90% working efficiency, with no additional waveform distortion—ensuring smooth, reliable power for sensitive elevator control components and industrial machinery.

Why Choose SHLEIPUSI?

As a professional transformer manufacturer with global reach, we specialize in delivering tailored solutions for elevator systems, factories, and electrical professionals:
  1. OEM/ODM Customization: Fully customize power, voltage, appearance, logo, and packaging to meet your project’s specific requirements—perfect for elevator OEMs, electrical contractors, and industrial clients.
  2. Stringent Quality Control: Every unit undergoes rigorous testing before shipment to ensure zero defects, with full compliance with international safety and performance standards.
  3. Global Support: Flexible shipping options (sea, air, land, express, railway) and all major trade terms (EXW, FOB, CIF, etc.) cater to global markets including Central Asia, East Asia, Africa, South America, and North America.
  4. Comprehensive After-Sales: Lifetime free technical guidance, on-site installation support by certified engineers, and warranty coverage for quality-related component replacements.
  5. Low MOQ & Fast Lead Time: Minimum order quantity of just 1 unit (for sample testing), with standard products delivered in 3-7 working days and custom orders in 10-30 days. Monthly capacity of 10,000 small-power units ensures reliable bulk supply.

Technical Specifications

Parameter Specification
Product Name Single Phase Elevator Transformer
Brand SHLEIPUSI / Customized
Place of Origin Shanghai, PRC
Rated Capacity 600VA / Customized
Product Model BK-600VA / Customized
Rated Input Voltage Single Phase 380V / Customized
Max Input Current 1.5A / Customized
Rated Output Voltage Single Phase 440V / Customized
Max Output Current 1.3A / Customized
Working Frequency 50/60Hz
Output Precision ±2%
Insulation Class F
Waveform Distortion None
Short-Circuit Resistance 4%
Working Temperature -10℃ ~ +45℃
Insulation Resistance ≥5MΩ
Noise Level <55dB
Temperature Rise <80K
Working Efficiency ≥90%
Cooling Method Dry Type Air Cooling
Protection Class IP00 / Customized
Dielectric Strength 3500V sinusoidal voltage for 1 minute (no breakdown/flashover)

200VA 300VA Mini Voltage Transformer Elevator Transformer 220V 24V Voltage Transformer 0

200VA 300VA Mini Voltage Transformer Elevator Transformer 220V 24V Voltage Transformer 1


Frequently Asked Questions

  1. What is the lead time for standard vs. custom orders?

    Standard products ship in 3-7 working days; custom orders take 10-30 days, depending on quantity and specifications.
  2. How do you ensure product quality?

    We conduct strict quality inspections from raw material intake to final production, with 100% pre-shipment testing to eliminate defects.
  3. What are your payment terms?

    30% deposit for standard products, 50% advance for custom orders, with the balance paid before shipment.
  4. Do you provide technical support for elevator installation?

    Yes—our professional technical team offers video call guidance, phone support, and on-site installation/debugging services.
  5. What packaging do you use for elevator transformers?

    Large units use heavy-duty wooden cases; small components use reinforced cartons to prevent transit damage.
  6. Can you add our custom logo to the transformer?

    Absolutely—we offer full OEM/ODM services, including custom logo printing on products, manuals, and technical documents (minimum order quantity applies).
  7. Which global markets do you serve?

    We cover Central Asia, East Asia, South Asia, Africa, South America, North America, and other international regions.
  8. What is your monthly production capacity?

    10,000 units/month for small-power models and 2,000 units/month for high-power transformers.
  9. What is your minimum order quantity (MOQ)?

    Our MOQ is 1 unit, supporting sample testing, small-batch orders, and large-scale wholesale.
  10. Is this transformer compatible with elevator control systems worldwide?

    Yes—its 50/60Hz frequency adaptability and customizable voltage output make it suitable for global elevator systems.
  11. Can you modify the transformer for non-elevator industrial applications?

    Yes—we specialize in custom configurations to meet the needs of factories, CNC machines, PV systems, and EV charging stations.
