Detail Information

Product Name:	800KVA Step Up Dry Type Voltage Transformer	Place Of Origin:	Shanghai, PRC
Rated Capacity:	800KVA Or Customized	Product Model:	SBK-800KVA Or Customized
Rated Input Voltage:	Three Phase 380V Or Customized	Rated Output Voltage:	Three Phase 10000V Or Customized
Output Precision:	±2%	Working Temperature:	－15℃~＋45℃
Insulation Resistance:	≥5MΩ
Highlight:	380v step up voltage transformer , 380v step down voltage transformer , customized step up voltage transformer

Product Description

800KVA Step up Dry Type Voltage Transformer | SBK Series Industrial Power Transformer

Contact Us

Tel: +86 15926315252 | Mobile/WeChat: +86 15926315252

Email: daniel@shlepus.com | WhatsApp: +86 18979230829

Product Introduction

Our 800KVA Step up Dry Type Voltage Transformer (SBK series) is a heavy-duty, high-performance power solution purpose-built for global industrial, renewable energy and utility step-up voltage applications. With a standard rated capacity of 800KVA and a fully customizable range from 500VA to 2000KVA, it delivers stable, high-precision step-up voltage conversion for 50Hz/60Hz AC circuits, with a standard 3 phase 380V input to 10000V output and fully customizable voltage configurations to meet diverse project demands. Designed for reliable continuous operation, it is the ideal step up dry type voltage transformer for low-to-medium voltage power transmission and control systems. Widely trusted by electrical engineers, renewable energy developers and industrial users worldwide, it is perfectly suited for photovoltaic systems, power generation, factory power distribution, CNC machine tools, EV charging stations, hospitals, precision instrumentation, industrial motors and power transmission equipment.

Key Features & Competitive Advantages

Engineered with premium raw materials and optimized design, our 800KVA step up dry type voltage transformer delivers exceptional long-term reliability and energy efficiency for demanding step-up applications. Core benefits include full-capacity continuous operation under non-overloaded conditions, ultra-low temperature rise, minimal energy losses and an energy-saving, environmentally compliant design. It adopts a high-permeability silicon steel core for noise-free operation (<55dB) and high magnetic flux, paired with high-purity winding material for superior conductivity and reduced heat generation. High-grade insulation materials withstand 3500V dielectric strength tests, with a heavy-duty nylon frame ensuring stable insulation performance and Class H insulation grade for enhanced thermal stability. It features ±2% output precision, no additional waveform distortion, robust high-insulation terminals with strong conductivity, safe and durable construction, and user-friendly wiring design for flexible installation.

Why Choose SHLEIPUSI

As a professional step up dry type voltage transformer manufacturer serving the global market, we deliver tailored end-to-end power solutions meeting international quality benchmarks. We offer comprehensive OEM/ODM services, including custom voltage, capacity, appearance, logo branding and packaging, with free professional product photography for bulk orders. Every unit undergoes strict multi-stage quality inspection from raw material intake to final factory testing, ensuring zero defects and consistent performance. We support worldwide shipping with all mainstream Incoterms available, plus lifetime free technical guidance, video/on-site installation support, and free replacement of defective components under warranty. With a monthly capacity of 10,000 small-power units and 2,000 large-power models, we accommodate flexible orders with a minimum order quantity of just 1 set.

Technical Specifications

Parameter	Core Specification	Fully Customizable
Product Name	800KVA Step up Dry Type Voltage Transformer	Yes
Model	SBK-800KVA	Yes
Rated Capacity	800KVA	Yes
Rated Input Voltage	3 Phase 380V	Yes
Rated Output Voltage	3 Phase 10000V	Yes
Working Frequency	50/60Hz	Yes
Output Precision	±2%	Yes
Insulation Class	H	Yes
Working Efficiency	≥90%	Yes
Cooling Method	Dry Type Air Cooling	Yes
Noise Level	＜55dB	Yes

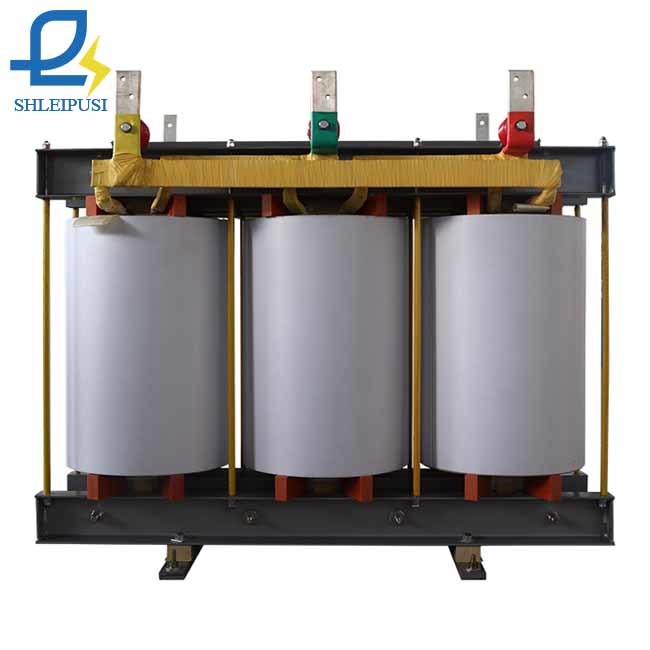

800KVA 400KVA Power Voltage Transformer Step up Voltage Transformer 0

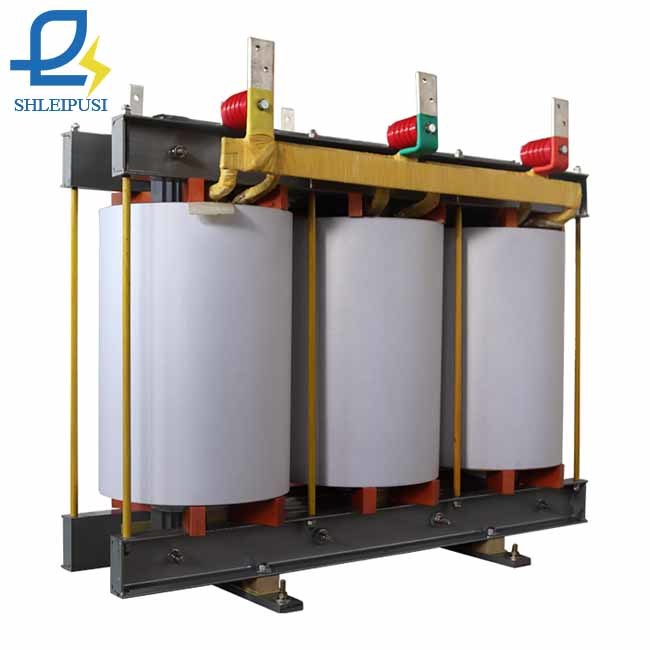

800KVA 400KVA Power Voltage Transformer Step up Voltage Transformer 1

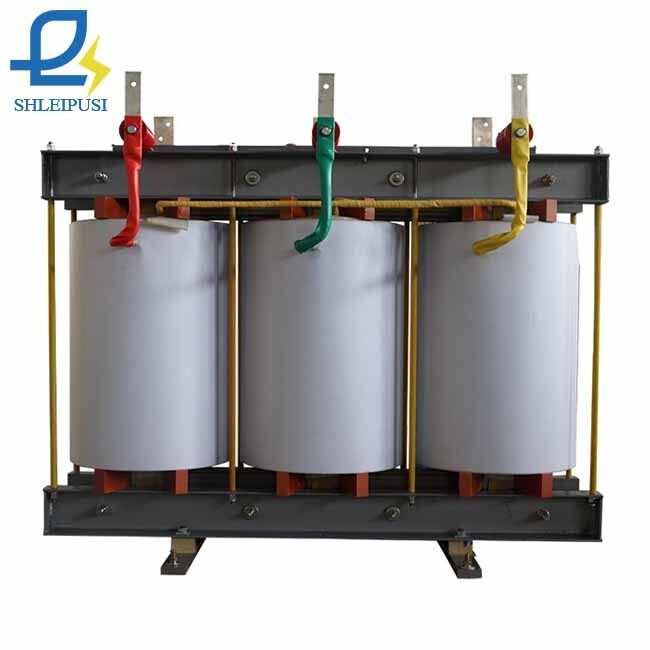

800KVA 400KVA Power Voltage Transformer Step up Voltage Transformer 2

Frequently Asked Questions (FAQ)

What applications is the 800KVA step up dry type voltage transformer suitable for?

It is ideal for photovoltaic system grid connection, power generation step-up, factory power distribution, EV charging infrastructure, industrial machinery and other applications requiring reliable voltage boost conversion.
What is the lead time for 800KVA step up dry type voltage transformers?

Standard models ship within 3-7 working days; custom orders take 10-30 days based on quantity and specifications.
How do you control the product quality of your transformers?

We conduct professional quality inspection at every production stage from raw material incoming to final testing, and only qualified products are shipped.
What are your accepted payment terms?

30% deposit for standard products, 50% advance payment for custom orders, with full balance settled before shipment.
Do you provide technical support for product installation and commissioning?

Yes, our professional technical team offers full installation guidance, including remote video and on-site support worldwide.
What packaging do you use for the 800KVA step up transformers?

Large units like 800KVA models use reinforced seaworthy wooden cases, with custom packaging options available.
Do you accept OEM/ODM orders with our brand logo?

Yes, we provide full OEM/ODM services, including custom logo printing on products, manuals and packaging for bulk orders.
What are your main global markets?

Our step up dry type voltage transformers are sold worldwide, covering Central Asia, East Asia, South Asia, Africa, South America and North America.
What is your minimum order quantity (MOQ)?

Our MOQ is 1 set for both standard and custom 800KVA step up dry type voltage transformers.
Can you customize voltage and configuration for my specific project?

Yes, we fully customize input/output voltage ratio, capacity, protection grade and design to match your renewable energy, industrial or utility project needs.

Tag:

Place of Origin:	Shanghai
Brand Name:	SHLEIPUSI Or Support OEM/ODM Service
Certification:	CE;ISO9001;UL
Model Number:	SBK-800KVA Or Customized

Minimum Order Quantity:	1
Price:	1 pc≤Qty≤5 pcs 5878USD; 5 pcs＜Qty≤100 pcs 5700USD; 100pcs＜Qty 5650USD
Packaging Details:	Non-fumigation plywood case ; Reference packing size: 140X95X155CM; Reference weight: 1300KG
Delivery Time:	1 pc≤Qty≤5 pcs 1-7 working days; 5 pcs＜Qty≤100 pcs 7-14 working days; 100pcs＜Qty More than 14 working days
Payment Terms:	T/T,D/P,D/A,L/C,Western Union,Alipay,Wechat pay
Supply Ability:	1000000PCS
