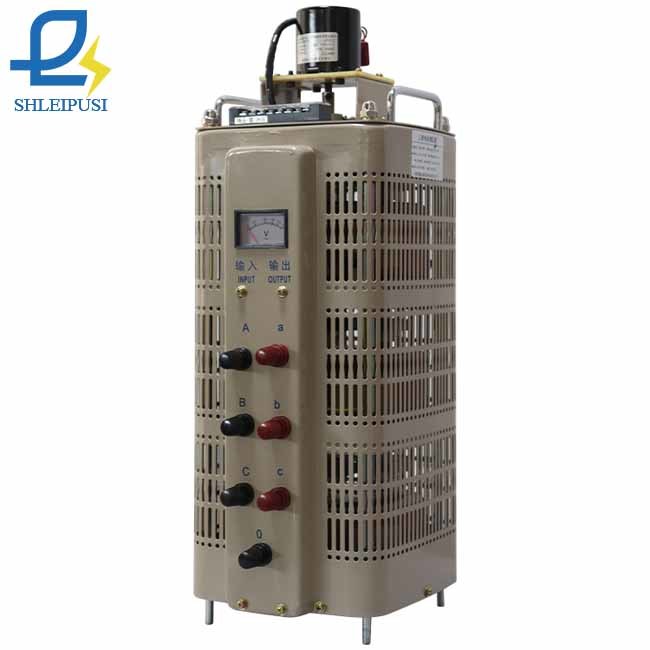

9KVA 3 Phase Variable Auto Transformer Adjustable Voltage Variac

9KVA 3 Phase Variable Auto Transformer Adjustable Voltage Variac
9KVA 3 Phase Variable Auto Transformer Adjustable Voltage Variac
9KVA 3 Phase Variable Auto Transformer Adjustable Voltage Variac 9KVA 3 Phase Variable Auto Transformer Adjustable Voltage Variac 9KVA 3 Phase Variable Auto Transformer Adjustable Voltage Variac 9KVA 3 Phase Variable Auto Transformer Adjustable Voltage Variac
Basic Information
Place of Origin: Shanghai
Brand Name: SHLEIPUSI Or Support OEM/ODM Service
Certification: CE;ISO9001;UL
Model Number: TSGC2-9KVA Or Customized
Minimum Order Quantity: 1
Price: 1 pc≤Qty≤5 pcs 225USD; 5 pcs＜Qty≤100 pcs 218USD; 100pcs＜Qty 215USD
Packaging Details: Non-fumigation plywood case ; Reference packing size: 24X28X60CM; Reference weight: 40KG
Delivery Time: 1 pc≤Qty≤5 pcs 1-3 working days; 5 pcs＜Qty≤100 pcs 3-7 working days; 100pcs＜Qty More than 7 working days
Payment Terms: T/T,D/P,D/A,L/C,Western Union
Supply Ability: 1000000PCS
Get Best Price
Chat Now
Detail Information
Product Name: Three Phase 9KVA 380V Variable Transformer Place Of Origin: Shanghai, PRC
Rated Capacity: 9KVA Or Customized Product Model: TSGC2-9KVA Or Customized
Rated Input Voltage: Three Phase 380VAC Or Customized Output Voltage: Three Phase 0-430VAC Adjustable Or Customized
Output Precision: ±1% Working Temperature: －15℃~＋45℃
Highlight:

3 Phase Variable Auto Transformer

,

9KVA Variable Auto Transformer

,

Adjustable Voltage Variac

Product Description

Three Phase 9KVA 380V Variable Transformer | TSGC2 Series Adjustable AC Voltage Regulator

Product Overview

Our TSGC2 Series Three Phase 9KVA 380V Variable Transformer, manufactured by Shanghai Lepus Electrical Equipment Co., Ltd., is an energy-saving, high-efficiency AC voltage regulation solution designed for manual voltage adjustment in industrial scenarios. Engineered for full-capacity continuous operation with zero waveform distortion and strong instantaneous overload tolerance, it adapts seamlessly to resistive, inductive, and capacitive loads. It is widely used in motor testing, factory power systems, CNC machine tools, photovoltaic systems, EV charging stations, voltage test benches, cutting equipment and precision instruments, making it the top choice for electrical engineers and industrial operators worldwide.

Key Features & Competitive Advantages

This contact-type variable transformer delivers industry-leading performance with user-centric design:

  • High Precision & Clean Output: Zero additional waveform distortion and accurate voltage regulation via high-conductivity double carbon brushes, ideal for sensitive testing and precision equipment.
  • Premium Build Quality: 100% copper coils with microcomputer modulation control, high-insulation reliable terminals, and top-grade raw materials ensure long service life and low maintenance.
  • Easy & Intuitive Operation: Manual rotary knob for seamless 0-430VAC output adjustment, paired with a digital display for real-time voltage monitoring, suitable for on-site industrial use.
  • High Efficiency & Global Compatibility: Up to 98% operating efficiency with low losses, 50/60Hz frequency compatibility, and wide voltage regulation range for global industrial applications.

Why Choose Shanghai Lepus

As an ISO9001 and CE certified professional variable transformer manufacturer, we serve clients across global markets including Central Asia, East Asia, South Asia, Africa, Europe, North and South America. We offer full OEM/ODM customization, covering tailored parameters, product appearance, logo printing and packaging to meet your unique needs. Every unit undergoes strict pre-shipment quality inspection to ensure zero defects. We provide flexible global shipping options with full incoterms support, lifetime free technical guidance, on-site installation service, and warranty coverage for quality issues, with a low MOQ of 1 unit for all orders.

Technical Specifications

Core ParameterStandard Specification
Product NameThree Phase 9KVA 380V Variable Transformer
ModelTSGC2-9KVA (Customizable)
Rated Capacity9KVA (Customizable)
Rated Frequency50/60Hz
Input Voltage3 Phase 380VAC (Customizable)
Output Voltage3 Phase 0-430VAC Adjustable (Customizable)
Phase3 Phase
Operating Temperature-15℃ to +45℃
Relative Humidity20% to 90%
Enclosure TypeMetallic Cabinet
Dielectric Strength2500V for 1 Minute
Display SystemDigital Display (Customizable)
CertificationsISO9001, CE

9KVA 3 Phase Variable Auto Transformer Adjustable Voltage Variac 0
9KVA 3 Phase Variable Auto Transformer Adjustable Voltage Variac 1

Frequently Asked Questions (FAQ)


Q1: What is your standard lead time?

A: Standard orders ship within 3-7 working days. Customized or bulk orders take 10-30 days, depending on order specifications and quantity.

Q2: How do you control product quality?

A: We implement full-process quality inspection from raw material incoming to final assembly. Only units meeting international standards are approved for shipment.

Q3: What are your payment terms?

A: 30% deposit for standard products, minimum 50% advance payment for customized orders, with full balance settled before shipment.

Q4: Do you offer installation technical support?

A: Yes. Our professional technical team provides full installation guidance, including on-site engineer dispatch and lifetime free telephone support.

Q5: What packaging do you use?

A: Large units use reinforced wooden cases for protection, while small products use high-strength cartons. Custom packaging is available upon request.

Q6: Do you accept OEM/ODM with our company logo?

A: Yes, we provide full OEM/ODM services, including custom logo printing on products and packaging for eligible orders.

Q7: What are your main global markets?

A: We serve worldwide markets, covering Central Asia, East Asia, South Asia, Africa, Europe, North America and South America.

Q8: What is your monthly production capacity?

A: Our monthly capacity reaches 10,000 units for low-power transformers and 2,000 units for high-power models, supporting bulk orders of all sizes.

Q9: What is your minimum order quantity (MOQ)?

A: Our MOQ is 1 unit, accommodating both sample testing and bulk procurement needs.
