Detail Information

Product Name:	250KVA 380V To 220V Step Down Voltage Transformer	Place Of Origin:	Shanghai, PRC
Rated Capacity:	250KVA Or Customized	Product Model:	SG-250KVA Or Customized
Rated Input Voltage:	Three Phase 380V Or Customized	Rated Output Voltage:	Three Phase 220V Or Customized
Output Precision:	±2%	Working Temperature:	－15℃~＋45℃
Insulation Resistance:	≥5MΩ
Highlight:	AI Data Center Voltage Transformer , Step Down Isolation Transformer 220V , Step Down Isolation Voltage Transformer

Product Description

250KVA 380V To 220V Step Down Voltage Transformer | Industrial Dry Type 3 Phase Transformers for Global Applications

Contact Us

Tel: +86 15926315252 | Mobile/WeChat: +86 15926315252 | Email: daniel@shlepus.com | WhatsApp: +86 18979230829

Product Introduction

Our 250KVA 380V To 220V Step Down Voltage Transformer (SG Series) is a high-performance industrial-grade 3-phase dry-type power solution, engineered to deliver precise, stable voltage step-down conversion from 380V to 220V for global industrial and commercial applications. Compatible with 50/60Hz electrical systems, this transformer supports full-capacity continuous operation, with ±2% output precision and no additional waveform distortion, making it the ideal power choice for factory power distribution, AI data centers, CNC machine tools, laser cutting machines, photovoltaic systems, EV charging stations, medical equipment, and precision instruments. Trusted by electrical engineers and industrial operators worldwide, it ensures reliable power supply for even the most demanding 24/7 loads.

Key Features & Competitive Advantages

Precise Stable Step-Down Conversion: Delivers consistent 380V to 220V voltage reduction with ±2% output precision, no additional waveform distortion, and 4% short-circuit resistance, perfectly matching sensitive industrial equipment and precision devices.
High-Efficiency Energy-Saving Design: New high-permeability silicon steel core enables noise-free (＜55dB) operation, ultra-low energy losses, and ≥90% working efficiency, drastically cutting long-term operational electricity costs.
Superior Electrical Safety & Insulation: High-purity winding material delivers strong conductivity and low temperature rise (＜80K); Class F insulation, 3500V di-electrical strength withstand, and ≥5MΩ insulation resistance ensure maximum operational safety.
Rugged Durable Construction: Customizable IP23/IP44/IP56/IP64 protection enclosure, reliable high-insulation terminals, safety trip lock, and premium nylon insulation frame guarantee long service life in harsh industrial environments.
Smart User-Friendly Design: Digital display for real-time working status monitoring, input/output indicators, optimized heat emission holes, convenient wiring structure, and brake-equipped universal wheels simplify installation and maintenance.

Why Choose Our 250KVA 380V To 220V Step Down Transformers

Full OEM/ODM Customization: We offer end-to-end customization for power, voltage, protection level, appearance, logo branding and packaging, plus free professional product photography and video producing services.
Rigorous Full-Process Quality Control: Every unit undergoes professional inspection from raw material intake to final assembly, with strict pre-shipment testing to ensure zero-defect delivery.
Global Logistics & Market Coverage: We support all mainstream transportation modes (sea, air, land, express, railway) and international trade terms (EXW, FOB, CIF, DDP, etc.), serving markets across Central Asia, East Asia, South Asia, Africa, South America and North America.
Lifetime After-Sales Support: We provide lifetime free telephone technical guidance, remote video installation support, free component replacement for warranty-covered quality issues, and optional on-site engineer services.
Flexible Production & Low MOQ: Monthly output reaches 10,000 units for small-power products and 2,000 units for large-power transformers, with a minimum order quantity of just 1 set for samples and bulk orders.

Technical Specifications

Item	Specification
Product Name	250KVA 380V To 220V Step Down Voltage Transformer
Brand	SHLEIPUSI (Customizable Supported)
Place of Origin	Shanghai, PRC
Rated Capacity	250KVA (Customizable)
Product Model	SG-250KVA (Customizable)
Rated Input Voltage	Three Phase 380V (Customizable)
Rated Output Voltage	Three Phase 220V (Customizable)
Working Frequency	50/60Hz
Output Precision	±2%
Insulation Class	F
Protection Class	IP23/IP44/IP56/IP64 (Customizable)
Cooling Method	Dry Type Air Cooling
Working Efficiency	≥90%

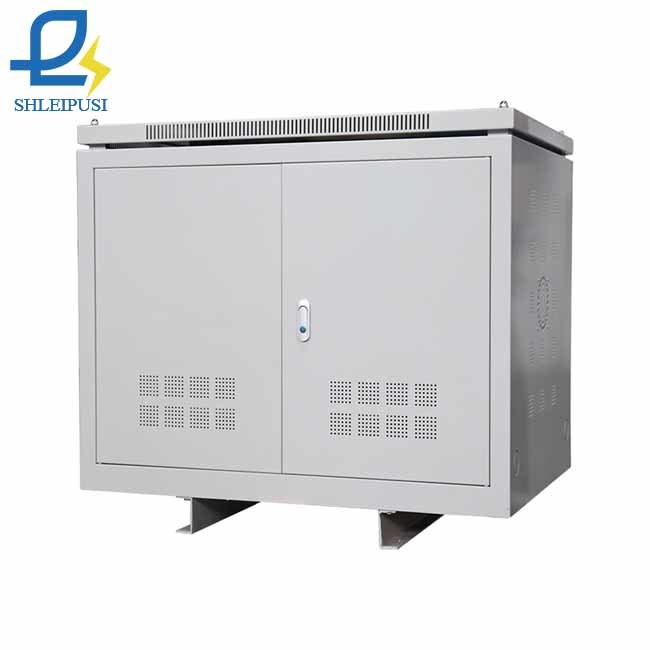

Step Down AI Data Center Isolation Voltage Transformer 380V To 220V 0

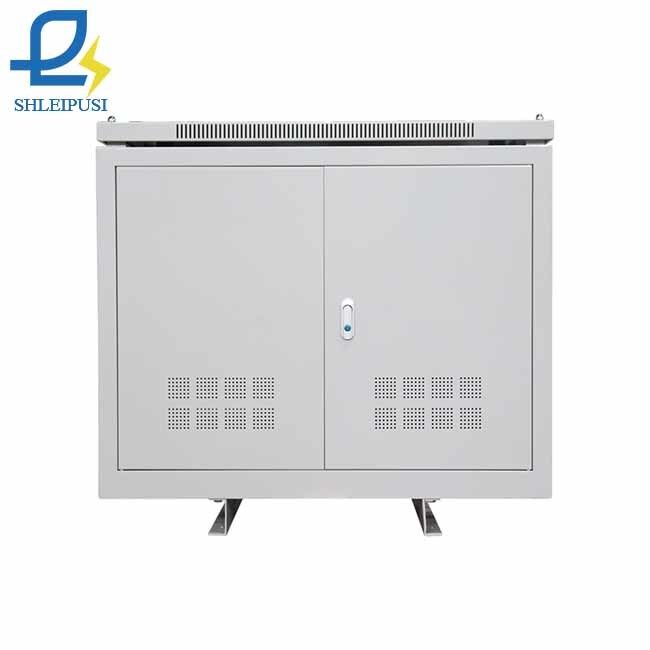

Step Down AI Data Center Isolation Voltage Transformer 380V To 220V 1

Frequently Asked Questions (FAQ)

How long is the lead time?

3-7 working days for standard products, 10-30 working days for custom orders based on quantity and specific requirements.
How do you control product quality?

We conduct professional quality inspection at every production stage from raw material intake to manufacturing, and only ship products meeting strict international quality standards.
What are your payment terms?

30% deposit for standard products, 50% advance payment for custom orders, with the full balance settled before shipment.
Can you provide technical support for product installation?

Yes, our professional technical team offers full installation guidance and application support for global customers.
What is your product packaging?

Large-capacity transformers use reinforced wooden cases, small products use high-strength cartons, with custom packaging available upon request.
Can you print our logo on the product?

Yes, we provide full OEM/ODM services, including custom logo placement on products, manuals and technical documents for eligible bulk orders.
What is your main market?

Our products are sold worldwide, covering core markets including Central Asia, East Asia, South Asia, Africa, South America and North America.
What is your production capacity?

Up to 10,000 units/month for small-power transformers, and 2,000 units/month for large-power industrial transformers.
What is your minimum order quantity (MOQ)?

Our minimum order quantity is 1 set, supporting both sample testing and bulk industrial procurement.

Our Factory

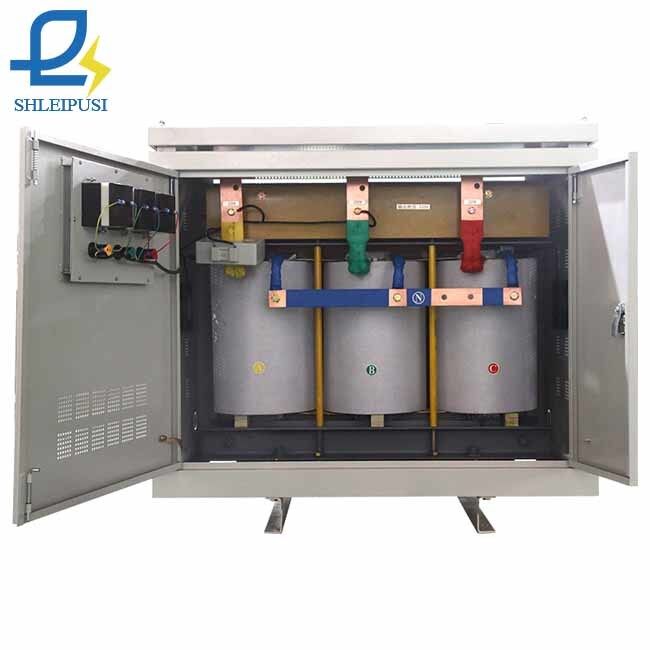

Step Down AI Data Center Isolation Voltage Transformer 380V To 220V 2

Tag:

Place of Origin:	Shanghai
Brand Name:	SHLEIPUSI Or Support OEM/ODM Service
Certification:	CE;ISO9001;UL
Model Number:	SG-250KVA Or Customized

Minimum Order Quantity:	1
Price:	1 pc≤Qty≤5 pcs 2250USD; 5 pcs＜Qty≤100 pcs 2100USD; 100pcs＜Qty 2035USD
Packaging Details:	Non-fumigation plywood case ; Reference packing size: 110X93X140CM; Reference weight: 580KG
Delivery Time:	1 pc≤Qty≤5 pcs 1-7 working days; 5 pcs＜Qty≤100 pcs 7-14 working days; 100pcs＜Qty More than 14 working days
Payment Terms:	T/T,D/P,D/A,L/C,Western Union,Alipay,Wechat pay
Supply Ability:	1000000PCS

Step Down AI Data Center Isolation Voltage Transformer 380V To 220V
